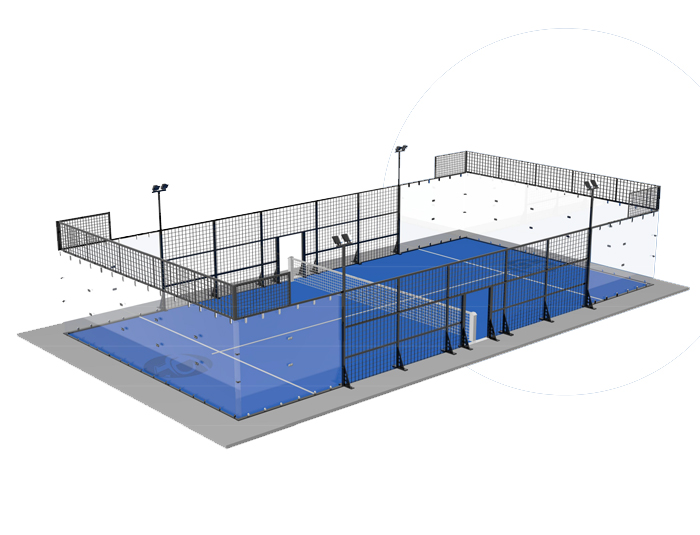

Venue Specifications
Venue specifications:20m in length,10m in width.
Surface layer: Type: artificial short grass;Length:12mm.
Tempered glass:Type:12mm specially-made explosion-proof tempered glass; Size:2000mm in width,3000mm in height,18 pieces in total.
Columns and fencing:The perpendicularity between the fencing columns,glass and the ground shall not exceed 1", and the overall spaceheight shall not be less than 9 meters.
After the glass is assembled, the surface shaall be flat and smooth without any protrusions.
column and Frame Specifications
The columns are made of Q235 hot-dip galvanized steel structure with specifications of
100*50*3.0mm;the four corner load-bearing columns are double columns with edge-wrapping design, and the distance between columns is2000mm;the frame is made of Q235 hot-dip galvanized steel structure with specifications of 60*40*2.0mm.Alternatively, the four
corner columns can be 100*100*3.0mm or 80*80*3.0mm (single column),and the net frame is 50*30*2.0mm.
Mesh,Middle Post, and Lighting System
The diameter of the mesh wire is 4.0mm, witha mesh size of 50mm*50mm and dimensions of 1000*2000mm, i.e., upper,middle andlower frames,connected with #304 screws throughout.Middle net and middle post:80*80"3.0mm aluminum alloy tennis post(floor-mounted type),
size:H920mm*W1000mm.
Lighting system: 4 arc-shaped lamp posts with a ground height of 6000mm, matched with8 LED lamps,each with a power of 200W.
Performance Features
Performance:Wind resistance level supports European standard calculation; joints are treated tightly; anti-pinch and anti-falling-off; modular components
for easy maintenance and replacement; no fadirg for 5 years and no paint peeling for 10 years.
