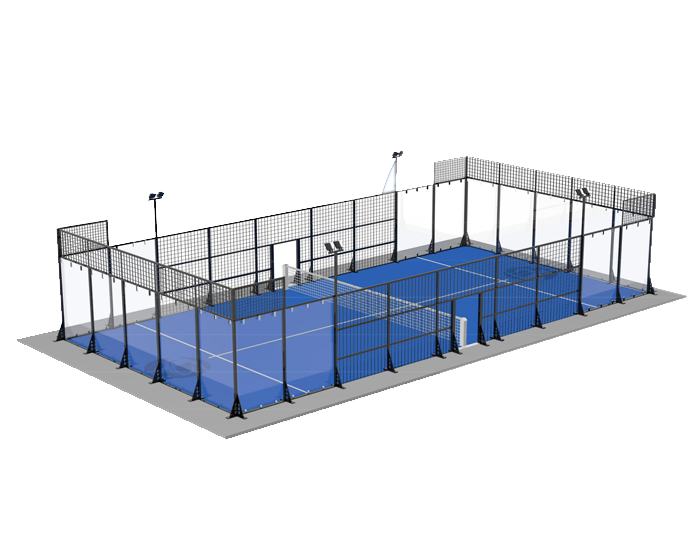

Padel Court
APPLICATION SCENARIOS
Our padel courts are widely used in:
· Sports Clubs & Padel Centers
· Real Estate Developments
· Hotels & Resorts
· Schools & Universities
· Investment Projects
Start your padel business with confidence
Installation Precision Requirements
For the fence posts and glass, the perpendcularity with the ground shall not exceed 1* and the overall space height shall not be less than 9 meters.After the glass is assembled, its surface shall be fiat and smooth without any protrusions.
Post and Frame Specifications
The posts shall be made of Q235 hot-dip gslvanized steel structure with specifications of 100*50*3.0mm.The four-corner load-bearing posts shall be double posts with
edge-wrapping design, and the distance betvween posts shall be 2000mm;the frame shall be made of Q235 hot-dip galvanized steel structure with specifications of 60*40"2.0mm. Alternatively,the four-corner posts can be 100*100*3.0mmor80*80*3.0mm(single post) and the mesh frame shall be 50*30*2.0mm.
Mesh and Middle Post Specifications
The wire diameter of the mesh is 4.0mm,and the mesh size is 50mm50mm;the overall dimension is 1000*2000mm,l.e.,there are upper,middle and lower frames,allconnected with #304 screws.Middle net and middle post:80*80*3.0mm aluminum alloy tennis post, size:H920mm*W1000mm
Lighting System Specifications
Lighting system: 4 arc-shaped lamp posts with a ground height of 6000mm, matched with 8 LED lamps,each with a power of 200W.
Outdoor Padel Court – Complete Solution for Clubs & Investors
Build a profitable padel business with a durable, CE-standard court system.
✔ Full Set Supply (Structure + Glass + Turf + Lighting)
✔ Global Delivery & Installation Support
✔ 10+ Years Export Experience
✔ Custom Design Available
How Much Does a Padel Court Cost?
Complete Outdoor Padel Court Price:
☞ $18,000 – $35,000 / Set (depending on configuration)
Includes:
· Steel structure
· Tempered glass
· Artificial turf
· LED lighting system
★ Note:
Installation, shipping, and foundation cost depend on your project location.
☞ Get Detailed Quotation
⚙️ Installation & Delivery Support
✔ Installation drawings provided
✔ Online engineer guidance
✔ Optional on-site installation
✔ Container loading plan
