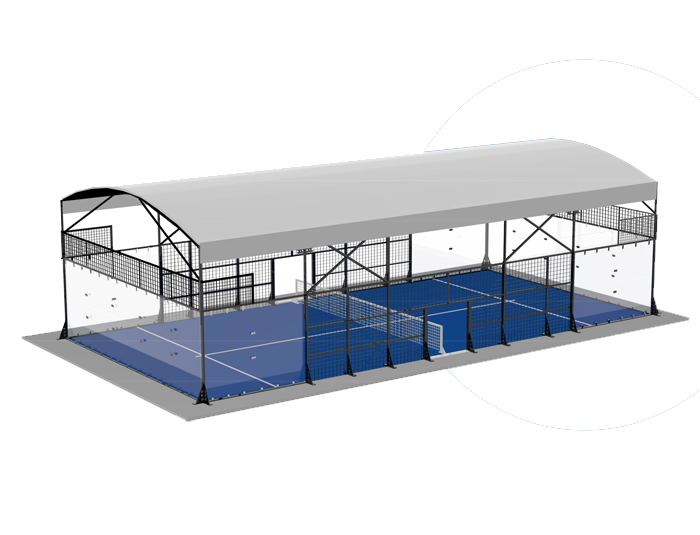

Padel Court
Verticality and Height Requirements
The perpendicularity between the fence postts, glass and the ground shall not exceed 1", and the overall space height shall not be less than 9 meters.
Glass Assembly Requirement
After the glass is assembled,its surface shall be flat and smooth without any protrusions.
Post and Frame Specifications
The posts shall be made of Q235 hot-dip galvanized steel structure with specifications of100*50*3.0mm;the four-corner load-bearing poosts shall be 100*100*3.0mm,and the distance between posts shall be 2000mm; the frame shall be made of Q235 hot-dip galvanized steel structure with specifications of 50*30*2.0mm.
Mesh, Middle Post, and Lighting System
The wire diameter of the mesh is 4.0mm, thee mesh size is 50mm*50mm, and the overall dimension is 1000*2000mm,i.e.,there are upper,middle and lower frames,all connected with #304 screws.
-Middle net and middle post:80*80*3.0mmaluminum alloy tennis post (floor-mounted), size:H920mm*W1000mm.
-Lighting system: 4 arc-shaped lamp posts with a ground height of 6000mm,matched with 8 LED lamps.each with a power of 200W.
-Performance: No fading within 5 years and no paint peeling within 10 years.
Build a profitable padel business with a durable, CE-standard court system.
✔ Full Set Supply (Structure + Glass + Turf + Lighting)
✔ Global Delivery & Installation Support
✔ 10+ Years Export Experience
✔ Custom Design Available
☞ Get Price in 24 Hours
☞ Download Court Layout
Complete Outdoor Padel Court Price:
☞ $18,000 – $35,000 / Set (depending on configuration)
Includes:
· Steel structure
· Tempered glass
· Artificial turf
· LED lighting system
★ Note:
Installation, shipping, and foundation cost depend on your project location.
✔ Installation drawings provided
✔ Online engineer guidance
✔ Optional on-site installation
✔ Container loading plan
